TYHL-1 Probe Cable Moves signals from the flame detection probe back to the main unit

TYHL-1 Probe Cable
Moves signals from the flame detection probe back to the main unit
Constructed using tinned copper for the core, plus layered insulation and a durable jacket
Cable length isn’t fixed―can be made to suit whatever installation needs come up
Download
View all downloads
  • TYHL-1 Probe Cable,MY SHOP,TYHL-1 Probe Cable

Description

Product Overview

A flame detection system has two halves: the probe looking into the flame, and the main unit in the panel deciding what that sighting means. Between them sits this flame detector probe cable, built as a heat resistant cable for burner flame sensor duty. Its job is unglamorous and essential — carry the small signal the probe produces back to the electronics without a break, without picking up noise on the way, and without asking for attention once it is installed. One end carries a circular connector that seats on the probe; the other arrives with the conductors bared so they can be landed on the terminal block of the main unit.

Most of these leads leave us in one of two situations. A plant is building or retrofitting a boiler, furnace or flare and needs the run made to the distance between the probe port and the panel. Or a maintenance team is chasing a flame signal that has gone unreliable and wants to rule out the lead before condemning a probe. Either way the cable is made to the length the installation calls for, coiled and tied for handling, so nobody ends up pushing a surplus coil into a hot duct. It is the part of the chain most easily overlooked, and the one that quietly decides whether a good probe gets a fair hearing in the panel.

Construction and Signal Path

  • Tinned copper core — the conductor is tinned before the core is laid up, so the strands stay clean and take a sound termination even after months in humid or sulphur-bearing plant air.
  • Layered insulation — insulation is built up in layers around the core rather than as a single wall, which is why we build this as a heat resistant cable for burner flame sensor duty instead of a general-purpose lead; the layers are what keep the probe signal separated from everything the run passes on its way to the panel.
  • Abrasion-resistant outer jacket — a tough jacket takes the abrasion of a duct, a cable tray or a casing entry, so it is the jacket that wears and not the insulation underneath it.
  • Two colour-coded conductors — the pair is colour-coded so both conductors stay identified at the terminal block; matching them to the markings on the main unit takes a moment rather than a meter.

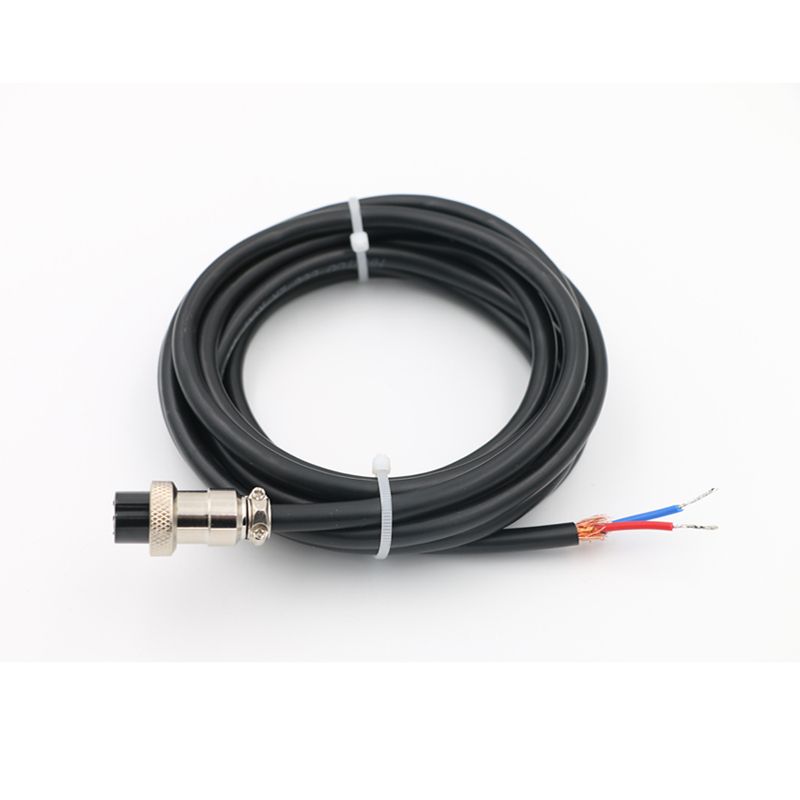

  • Circular connector at the probe end — the probe end is a circular connector with a metal locking ring that threads onto the mating socket, keeping the joint seated where a burner front vibrates.
  • Bared conductors at the panel end — the panel end arrives stripped and ready for the terminal block, with no separate plug to source and no adaptor loose in the cabinet.
  • Built to the measured run — the lead is made to the length you measure, so the route does not end with a surplus coil taped to a casing or pushed into a hot duct.
  • Coiled and tied for transport — it arrives coiled and tied, which keeps the jacket and the connector protected until the run is ready to be pulled in.

Specifications

FunctionCarries the probe signal from the flame detection probe back to the main unit
ProductTYHL-1 probe cable
CoreTinned copper
InsulationLayered insulation
Outer jacketDurable jacket
ConductorsTwo, colour-coded
Probe endCircular connector with metal locking ring
Panel endBared conductors for the terminal block
LengthMade to the installation
SuppliedCoiled and tied

Probe Cable vs Ignition Cable

Two very different cables leave our plant for combustion work, and they are not interchangeable. An ignition cable carries high-frequency, high-voltage pulses out to a torch or an igniter. This lead carries a small sensing signal the other way, from the probe back to the main unit. The electrical jobs are opposites, so the construction is different too: an ignition lead needs insulation that stands up to a pulse, while a heat resistant cable for burner flame sensor duty needs a clean, continuous path for a weak signal over the distance between the burner front and the panel.

That distinction is what keeps a maintenance store honest. A lead pulled from the wrong bin will physically fit a probe and can even produce an occasional signal, which makes the fault you are chasing harder to find rather than easier. When you order, match the lead to the device at each end — the probe on the flame side and the main unit in the panel. If the run in front of you goes to a torch or an igniter instead of a detector, you need the ignition cable, and it is worth saying so when you enquire so the right part is picked the first time.

Length and Routing

  1. Measure the route, not the gap. Follow the path the lead will actually take around the casing, along the tray and into the panel; a straight-line measurement between probe port and cabinet will always come up short.
  2. Leave a service loop at each end. Allow enough slack at the probe to disconnect the connector without putting the jacket under tension, and enough at the panel to land both conductors comfortably on the terminal block.
  3. Note what the run passes. Hot ducting, the burner front, steam lines and any ignition or power cables running in parallel all change how the lead should be routed, even where the length stays the same.
  4. Check the socket on the probe. Confirm the connector on the lead matches the socket actually fitted; if you are not sure, a photograph of the socket settles it faster than a description.
  5. Send the figure with the order. As a flame sensor cable manufacturer we build to the number you give, so measure twice and send the route length in metres rather than the length of the old lead plus a guess.

Typical Installations

  • Coal-fired and heavy-oil boiler fronts — the probe looks at the flame through the burner register and the heat resistant cable for burner flame sensor duty carries that sighting back to the panel over a route that is usually hot, dirty and crowded with other cabling.
  • Petrochemical process furnaces — the distance between the furnace wall and the control room sets the length, and the route through the unit decides everything else.
  • Flare stack pilot monitoring — the probe sits at the pilot while the panel sits far below, so a lead made to the full stack run avoids a joint partway up.
  • Waste incineration and biomass plants — duty that swings between frequent starts and long running periods puts the lead through repeated heat cycles at the burner front.
  • Burner and boiler OEM packages — a builder repeating the same package wants the same lead at the same length every time, so that every unit leaves the works identical.
  • Shutdowns and retrofits — where a general-purpose lead has hardened or chafed, replacing it usually means re-measuring the route at the same time, because the old run was never quite the right length.

Pairing with Probe and Detector

Most of the leads we build go out with a probe at one end of the chain and a detector at the other. The flame detection probe screws into the burner front and looks at the flame; a DIN-rail unit such as the TYH-1 controller, or a field detector from the TYH range, sits at the other end and turns what the probe sees into a signal the burner management system can act on. The lead is the piece in between, and it only works as a chain when both ends are known before it is built.

If your probe and panel are already on site, send photographs of the probe socket and of the terminal block rather than a description — the arrangement of the connector and the terminals matters more than the name on the device. If you are buying the whole chain at once, say so: as a flame sensor cable manufacturer we can supply the probe, the detector and the lead together, so the connector on the lead is matched to the probe it will be fitted to and there is one party to talk to if the flame signal is not what it should be.

Ordering and Delivery

  • Photographs of both ends — one of the probe socket and one of the panel terminal block; these two images remove most of the risk of a wrong connector.
  • The number of leads you want — most maintenance teams order one to fit and one to keep on the shelf, because a failed lead during a start-up sequence stops the whole unit.
  • Site requirements — if the lead has to pass through a particular gland, carry a plant tag or be labelled to your own standard, say so when you order rather than at the panel.
  • Commercial terms with your sales contact — lead time, payment terms and freight are quoted for each order; confirm them with your sales contact when you place it.
  • What you receive — a lead made to the length and ends agreed on the order, coiled and tied. Every flame detector probe cable is built to the figure you approve, so the length that arrives is the length you signed off.
  • Packing — leads travel coiled and tied with the connector protected; if your store has a preferred packing or labelling arrangement, mention it with the order.

In-Service Inspection

When a flame signal starts to flicker or drops out at start-up, work along the lead before anyone signs off a new probe. Begin at the probe end: the locking ring should be fully seated on the socket and the connector body should not rock when you hold it. Run a hand along the jacket from the probe back to the first tie and look for a flattened or chafed section where the lead crosses a casing edge or a duct lip, since that is where abrasion starts. At the panel, check the two conductors at the terminal block for darkening or a loose strand, which usually means the terminal was not tight rather than that the cable has failed.

Check the ties as well. A tie pulled hard against the jacket pinches the insulation under it, and a lead left hanging its own weight from the connector loads the joint at the probe. If the jacket has hardened or cracked where the run passes a hot zone, a general-purpose lead was probably used where the route needed a cable built for the heat, and re-routing the run matters as much as replacing the cable. Record the length and the two end arrangements when you fit a new lead — that note is what makes the next order a single step instead of a measurement exercise.

Technical Support & Model Matching

Not every buyer arrives knowing which item in the range fits. Tell us what the part has to do, the space it goes into and the supply you have, and our engineers check it against the specifications we publish and tell you which model matches — and when a standard item will not do. The same team designs, builds and tests the products in our own plant in Shaanxi: 28 people, 16 patents, national high-tech enterprise status, in business since 2018. They answer questions before you order, stay reachable afterwards for fitting questions and fault-finding, and take custom or non-standard requests directly.

FAQ

How do I confirm the cable will fit my probe connector?

Send a photograph of the socket on your probe and one of the terminal block in the panel. The thread, the size of the connector body and the way the socket is keyed are what decide the fit, and they are easier to compare from a picture than from a model name. As a flame sensor cable manufacturer we see the same few arrangements repeatedly, so we can usually tell you quickly whether a standard lead will seat or whether your run needs something different.

Will a long run weaken the flame signal?

A long run is not a problem in itself. The trouble with a fixed-length lead on a long run is what you are forced to do with the surplus — coil it, extend it, or run it twice around a duct. Because the lead is made to your measurement, the route is a single length from probe to panel. What matters over distance is where the cable goes: keep it clear of ignition and power cables running in parallel, and off hot surfaces, and the signal arrives at the panel as cleanly as it left the probe.

How much heat can the lead take near the burner front?

The insulation is layered because the run often passes close to the burner front, and the construction is built for exactly that. The answer for your plant depends on the route: tell us the ambient temperature along the run and how close it passes to the hot zone, and we will confirm whether the standard construction suits it or whether the route itself should be changed.

What is at the panel end of the cable?

The two conductors arrive stripped and colour-coded, ready to land on the terminal block of the main unit. There is no plug to source and no adaptor to fit inside the cabinet. Match the conductor colours to the terminal markings on the detector and tighten them down properly. If your panel expects a different termination, tell us before the order is placed so you know in advance whether the flame detector probe cable can be supplied the way your cabinet needs it.

Can the lead be replaced on its own, without a new probe?

Yes. The lead is a separate item from the probe and from the main unit. On most maintenance jobs it is the first thing to change when a flame signal becomes unreliable — it takes minutes at the terminal block and it rules out a common cause before anyone commits to a new probe. Keep the old lead until the new one has run through a full start-up, so you can compare the two if the signal is still not right.
