Description

Product Overview

A soot blower cleans by firing a short, high-energy pulse across the boiler's heat-transfer surfaces, and something has to light that mixture on demand, cycle after cycle, for years. The TYQ-3-15 is that component: an ignition unit built for soot blower assemblies and supplied as a matched three-part set — the igniter body, ignition cable TYL-1 and semiconductor tip TYZ-2 — so the discharge path from the power stage to the flame front arrives as one combination instead of parts from three different sources.

In service it sits between the plant's control panel and the blower port. The cleaning programme calls for ignition, the unit charges and discharges, the pulse runs down the cable and sparks across the tip, and the mixture in the blower lights. That happens on a fixed rhythm for the length of the cycle, then the sequence repeats on whatever schedule the boiler's cleaning programme sets — once a shift on a clean fuel, far more often on a heavy one.

A shock wave sootblower high energy igniter is usually bought for one of two reasons: as a scheduled spare for a unit already in service, or because the blower has become unreliable and the ignition side is the suspect. Both come down to whether the replacement matches what is already bolted to the boiler. Check the electrical figures against the panel and the physical details against the port before the order goes in; if the blower is still being specified, take the same two sets of details to whoever is designing the panel and whoever is building the port.

Specifications

ParameterValue
ModelTYQ-3-15
Stored energy3 J
Output voltage2500 V, held constant
Spark frequency15 Hz
Input power100–250 V, 50 Hz
Input currentBelow 0.5 A
Discharge methodAll-solid-state, high-frequency voltage boost
Operating temperature-25 °C to 85 °C
Compliance standardQ/TYQ01-2021
HousingRibbed aluminium case on a flanged base
Supplied asIgniter body, ignition cable TYL-1, semiconductor tip TYZ-2
MountingBolted through the flanged base to panel or bracket

Applications in Soot Blowing

  • Thermal power stations. Ash collects on convection and superheater surfaces between cleaning cycles, and the blower has to light on the first attempt every time. In this duty a shock wave sootblower high energy igniter is part of the boiler's routine rather than a special item, expected to keep firing cycle after cycle through the shift without the sequence retrying.
  • Coal-fired and heavy-oil boilers. Heavier fuels leave less margin for a weak spark, so the energy stored in the unit and the regularity of the discharge matter more than they do on gas firing.
  • Petrochemical furnaces and process heating. Fired heaters, supplementary heating and process furnaces need ignition that behaves predictably, and the unit is built to the Q/TYQ01-2021 standard that plant specifications of this kind usually reference.
  • Heavy manufacturing and metallurgy. Foundries, steel plants and coking operations run boilers in dusty, hot surroundings, and the flange-mounted aluminium housing with its ribbed sides suits a mounting point that is nowhere near a clean room.
  • Retrofits and replacements. Where an older contact-type igniter has worn at the contacts and become the weak link in the sequence, the whole discharge path — unit, cable and tip — can be replaced as a set rather than patched part by part.

Product Advantages

All-solid-state discharge. A high-frequency boost stage charges the storage capacitors and a semiconductor switch releases the energy into the output. There is no contactor to arc and no moving electrode in the power stage to drift out of adjustment, which is the failure that shortens the working life of contact-type igniters.

The same spark from the first pulse to the last. Output is regulated rather than allowed to decay as the capacitors drain, so the twentieth spark of a cleaning cycle is as strong as the first. On a soot blower that is the difference between a mixture that lights first time and a sequence that has to retry.

A small load on the existing panel. Current draw is low enough that the igniter can normally be fed from the control circuit already in the cabinet, so a retrofit does not usually need a dedicated supply or an extra transformer.

Rated for the plant rather than the workshop. The ambient window takes in a cold winter start and a boiler house in summer, so the unit does not depend on a heated enclosure or a cooling fan to stay inside its limits.

A discharge path that arrives matched. Igniter, cable and tip are supplied together, so the output connector, the cable termination and the tip interface already belong to each other. Replacing a worn tip later does not mean re-engineering the connection.

Built to be changed, not rebuilt. The igniter is a self-contained block rather than a set of modules wired together on site, so a failure is handled by swapping the unit during a short outage and inspecting the old one on the bench, instead of fault-finding inside a live cabinet.

A high energy ignition system manufacturer, not a reseller. The same team that builds these units answers the technical questions, which is why a cable run that does not match a standard length, or a tip that has to suit an existing port, is looked at as part of the order rather than refused as an aftermarket problem.

Installation & Commissioning

  1. Prove the supply before anything else. Measure at the point where the igniter will actually be fed and confirm it sits inside the unit's input band; a panel that reads high or low is worth sorting out before the housing goes on.
  2. Mount the housing. Bolt through the flanged base onto the bracket or panel inside the blower enclosure, front panel facing the access door, with the ribbed sides clear of anything that would block air movement across them.
  3. Connect the output side first. Fit the ignition cable to the coaxial output, route it away from hot surfaces and sharp edges, and leave a service loop at the burner end so the tip can be removed without pulling the cable back through the duct.
  4. Set the tip. Fit the semiconductor tip into the blower port at the depth the port drawing calls for. Where the tip is adjustable, a spark gap in the region of 3 to 5 mm is the usual starting point; check that the spark lands in the mixture zone rather than against the port wall.
  5. Power up and look for the spark. Switch on, confirm the indicator is lit, then check for a spark at the tip with the fuel off. No spark usually means the output is not reaching the tip, the gap has closed up, or the tip has fouled.
  6. Run one cycle under observation. Let the sequence fire the igniter exactly as it would in service and watch for a steady spark through the whole cycle rather than a strong start and a fading finish.
  7. Record what you fitted. Note the cable length, tip type, gap setting and supply reading on the panel schedule, so the next person to change the tip is not measuring from scratch.

Matching an Existing Installation

  • The unit coming out. Note the stored energy, output voltage and spark rate on the old nameplate, or send a photo of it. If the replacement fires at a different rate, the cleaning programme's timing may need adjusting to suit.
  • The cable run. Measure the real route from the igniter to the port, including bends, a service loop at the burner end and any ducting it passes through, and order the cable to that length rather than coiling the excess inside the enclosure.
  • The tip and the port. Shape, depth in the blast path and the way the tip is retained all have to suit the port it fires into; a sketch or a photo of the old tip tells us far more than a paragraph of description.
  • Mounting and clearances. Check that the base lands on something flat, that there is room to reach the front-panel connections with a hand and a tool, and that the case is not boxed in on all four sides.
  • How the cycle is triggered. Confirm what calls for ignition in your system — a relay from the cleaning programmer, a PLC output or a manual push — so the wiring is agreed before the unit is on site.
  • The clause you are buying against. If the plant's ignition specification is written around an explosion proof igniter for industrial boilers, send the clause and the area classification with the enquiry. It says more about the enclosure, mounting and documentation than a datasheet does.
  • Conditions at the mounting point. Radiant heat from the boiler, a cold draught from a louvre or a washdown area all change what the installation needs. Describe where the unit actually sits, not just which plant it is in.

Ordering & Delivery

  1. Work from the duty, not the part number. As a high energy ignition system manufacturer we quote against what the blower has to do; if the standard unit covers it we will say so, and if something has to be adapted we will say that too.
  2. Send the installation details. What the igniter fires, the supply available at the panel, the port drawing or a photo of the old tip, and the conditions at the mounting point. That is enough to quote a configuration rather than a bare part.
  3. Agree the configuration in writing. Cable length, tip type, quantity and any spares you want on the same order are confirmed on the quotation, so there is no argument when the carton is opened on site.
  4. Flag a classified-area requirement at enquiry stage. If your plant's specification includes an explosion proof igniter for industrial boilers, say so in the first message. It changes which model is quoted and which documents are prepared, and neither is quick to change once the order is placed.
  5. Ask what is issued with the goods. Conformity with Q/TYQ01-2021, test records and a packing list showing cable length and tip type are the usual items; tell us what your QA department needs and we will confirm what can travel with the shipment.
  6. Order the spares with the unit. A tip and a cable on the shelf turn a misfire into a short job, and buying them together saves a second shipment later.
  7. Check the set on receipt. Compare the cable length and tip type against the quotation before installation begins, and raise any difference while the unit is still in its packing.

Technical Support & Model Matching

Not every buyer arrives knowing which item in the range fits. Tell us what the part has to do, the space it goes into and the supply you have, and our engineers check it against the specifications we publish and tell you which model matches — and when a standard item will not do. The same team designs, builds and tests the products in our own plant in Shaanxi: 28 people, 16 patents, national high-tech enterprise status, in business since 2018. They answer questions before you order, stay reachable afterwards for fitting questions and fault-finding, and take custom or non-standard requests directly.

FAQ

What supply does this igniter need?

Anywhere from 100 V to 250 V at 50 Hz, drawing under 0.5 A. That band covers both a 220 V and a 240 V panel without a tap change, which is why the same unit turns up on installations in different regions. Measure at the point where the igniter will actually be fed rather than at the main incomer — a long run or a shared circuit can leave you outside the band even when the board itself reads correctly.

Can it be adapted to a particular soot blower arrangement?

For a shock wave sootblower high energy igniter, the electrical side is fixed: the stored energy, output voltage and spark rate are what make the discharge predictable, and they are not varied unit to unit. What does vary is the physical side — the length of the ignition cable run and the shape and depth of the semiconductor tip that suits the blower port. Send a drawing or a clear photo of the port and the tip that came out of it, and our engineers will confirm what can be matched and where a compromise is unavoidable.

What maintenance does it actually need?

Less than a contact-type unit, because there are no contacts to dress or re-gap. What does need attention is the part that sits in the heat: check the semiconductor tip for erosion or burning, check the cable jacket near the connector for cracking or chafing, and keep both clean. Replace the tip on a planned interval rather than waiting for a misfire — a tip that has started to erode will usually still fire, which is exactly what makes it easy to miss.

Can you help us through the first installation?

Yes. Our engineers will go through the mounting, the cable route and the tip setting with your team before the unit goes in, and they will work through a no-spark or intermittent-spark problem with you afterwards. Most first-installation problems come down to three things: a supply that is not what the panel drawing promised, a tip sitting too deep or too shallow in the blast path, or an output connection that is not fully seated.

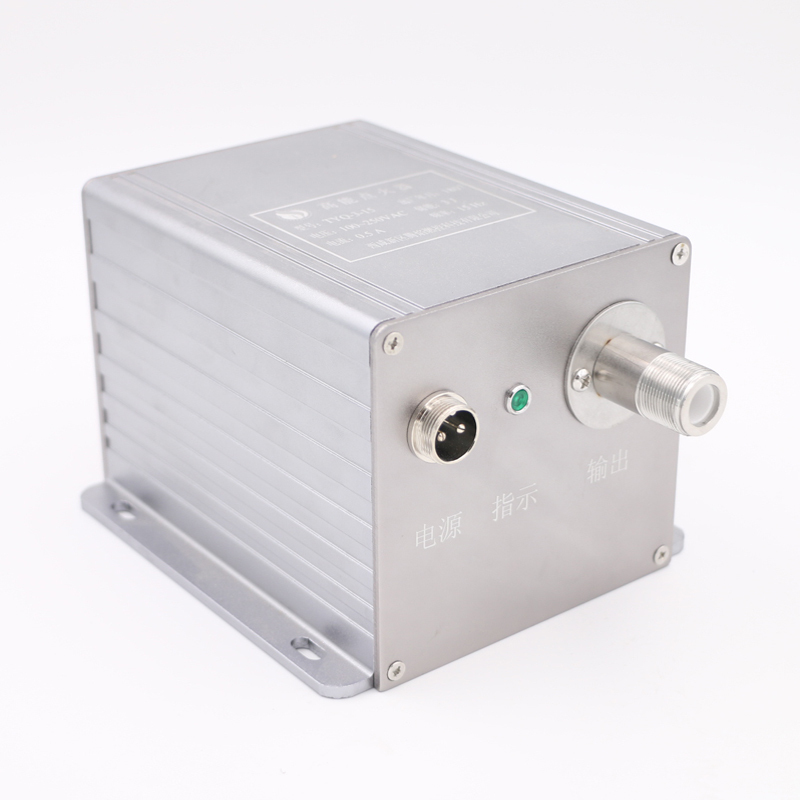

What connects where on the front panel?

Three positions, marked power, indication and output. Mains goes to the circular connector, the ignition cable goes to the coaxial output beside it, and the green indicator shows the unit is live. The light tells you the supply is present and the electronics are powered — it does not tell you there is a spark at the tip, so a lit lamp with no ignition still means checking the cable and the tip.

Can it be installed in a classified area?

The unit is built to Q/TYQ01-2021 and is supplied for soot blower duty inside the boiler house. Whether a particular installation counts as a hazardous area, and whether it must be fitted with an explosion proof igniter for industrial boilers, is settled by the plant's own classification and by local approval rules, not by us. Send the classification and the standard your inspector works to, and we will tell you what this unit is rated for and what documentation accompanies it — and if the answer is that a different configuration is needed, we will say so before you order rather than after.

Which parts wear, and what should we hold as spares?

The tip and the cable are the two parts that see heat and handling; the igniter body has no wearing contacts inside it. In a plant that cleans often, or one running a heavy fuel, keep at least one tip and one cable per unit on the shelf — both are quick to change and neither needs the igniter taken off its mounting. As a high energy ignition system manufacturer we supply the cable and the tip as separate items, so a worn tip does not mean buying a whole new igniter.
