Description

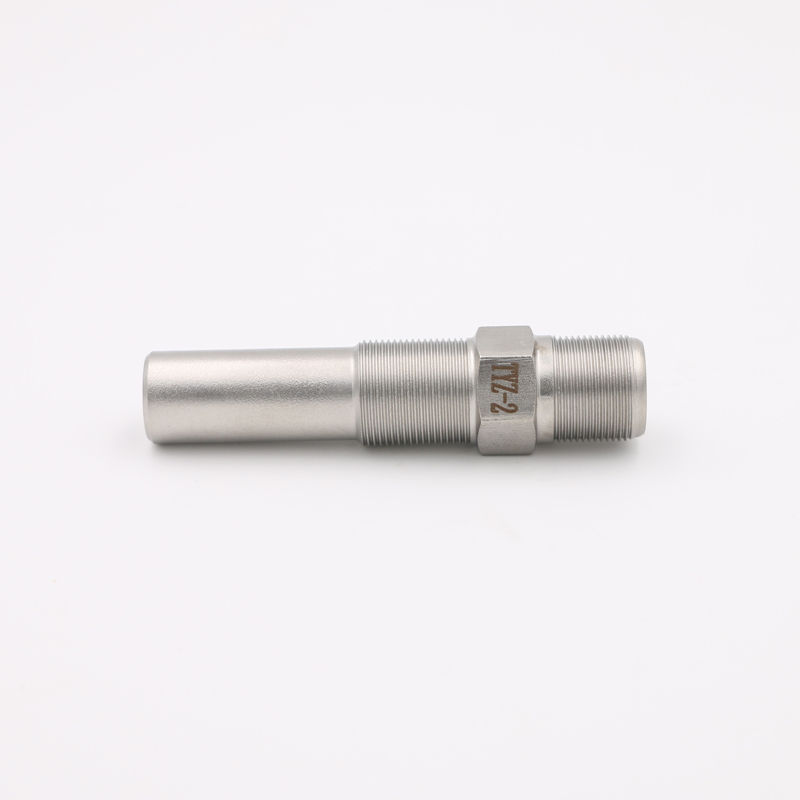

Semiconductor Electrode Igniter (700-1000V, Integrated Stainless Steel Structure)

The Semiconductor Electrode Igniter is a high-performance ignition component engineered for extreme thermal environments. By releasing high-voltage DC pulses onto a specialized semiconductor enamel ceramic surface at the electrode tip, it generates an intense electron avalanche-spark that remains completely unaffected by external environmental factors such as water and dust.

Constructed with a 95% high-alumina ceramic body and an integrated 304 stainless steel structure sealed with high-temperature glass adhesive, this electrode delivers dependable operational stability across an operating temperature range of -60°C to 800°C (with short-term tolerance up to 1300°C).

Expert Selection Guide

To match this electrode igniter to your thermal system requirements, verify the following parameters:

  1. Discharge Voltage Matching: Ensure your pulse power unit matches the 700V to 1000V discharge voltage requirement for stable electron avalanche generation.
  2. Thermal Range Verification: Confirm that your continuous working temperature falls within -60°C to 800°C, noting the 1300°C short-term thermal limit.
  3. Structural Customization: If standard mounting dimensions do not fit your burner layout, non-standard shapes and sizes can be tailored to your specifications.

Technical Specifications

Parameter Item Technical Specification
Function High-voltage DC pulses released onto semiconductor enamel ceramic tip to generate intense electron avalanche-spark; resistant to water and dust
Material Composition 95% high-alumina ceramic, 304 stainless steel, glass adhesive, semiconductor ceramic
Process Structure Integrated stainless steel structure with high-temperature glass adhesive sealing
Operating Temperature -60°C to 800°C (Short-term tolerance up to 1300°C)
Discharge Voltage 700V - 1000V
Customization Support Other shapes and sizes can be tailored according to customer requirements

Core Product Features

  • Electron Avalanche Spark Technology: Specialized semiconductor ceramic tip produces high-intensity ignition sparks unaffected by surface moisture or dust contamination.
  • Extreme Temperature Endurance: Withstands continuous operating temperatures from -60°C up to 800°C, with short-term resistance reaching 1300°C.
  • Robust Material Build: Fabricated from 95% high-alumina ceramic and 304 stainless steel for superior mechanical strength and corrosion resistance.
  • High-Temperature Sealing: Integrated structure sealed with specialized glass adhesive to prevent gas leakage and thermal degradation.

Practical Application Scenarios

Industry Sector Operational Scenario Electrode Solution
Industrial Furnaces High-temperature continuous heating and combustion chamber ignition. 304 stainless steel integrated structure rated up to 800°C continuous operation.
Burners & Boilers Ignition under humid, dusty, or heavy condensation conditions. Semiconductor enamel tip immune to water and dust interference.
Thermal Processing Systems Severe thermal cycling with short-term temperature spikes. 95% high-alumina ceramic body supporting short-term 1300°C tolerance.

Quality Assurance & Warranty Policy

Every semiconductor electrode igniter undergoes strict factory testing to verify insulation integrity, sealing quality, and discharge performance:

Service Policy Commitment Details
Standard Warranty 12-month quality guarantee from the date of shipment.
Inspection Standard 100% full inspection covering dielectric strength, sealing, and dimensional accuracy.
Custom Engineering Professional engineering support for non-standard sizing and structural adaptations.

Frequently Asked Questions (FAQ)

Q1: Why is this semiconductor electrode unaffected by water and dust?

A: High-voltage DC pulses released onto the special semiconductor enamel ceramic surface create an intense electron avalanche-spark that instantly overcomes surface contaminants and moisture barriers, ensuring reliable ignition.

Q2: What is the maximum short-term temperature tolerance of the electrode?

A: While its continuous operating temperature is -60°C to 800°C, the robust 95% high-alumina ceramic and 304 stainless steel structure can tolerate short-term exposure up to 1300°C.

Q3: Can we request custom shapes and dimensions for specialized burners?

A: Yes. Other shapes, lengths, and mounting dimensions can be fully customized according to your specific installation requirements.

Need technical drawings or custom sizing consultation? Contact our engineering team today for professional assistance!
