Plasma Igniter TYDQ-1 for the Petrochemical Industry

Plasma Igniter TYDQ-1
AC Power Input: AC220V 5A
Lithium Battery: 48V20Ah, 5A charging current
Inverter Power: 1000W
UV Flame Detector: Sourced internationally, switching output
Plasma Ignition Generator: 1000W
Output Voltage: 10KV 20KHz
Compliant with Q/TYQ 01-2021
Download
View all downloads
  • Plasma Igniter TYDQ-1,MY SHOP,Plasma Igniter TYDQ-1

Description

Product Overview

The TYDQ-1 is a cabinet-built plasma ignition device for thermal power plant boilers, industrial furnaces, process heaters and burners, handling light-off and relight duty. A 1000 W plasma generator produces a 10 kV discharge at 20 kHz from an AC220V 5 A supply, and the same enclosure carries a 48 V 20 Ah lithium battery that keeps the ignition sequence alive when the mains dips. Flame verification comes from an internationally sourced UV detector with a switching output, so ignition and flame confirmation are handled by one unit rather than two boxes on the panel wall.

It is built for plants where a failed light-off is more than an inconvenience — a refinery process furnace, an industrial burner that has to come back after a trip, or any similar duty where ignition has to be immediate. The burner control keeps its own logic; the cabinet takes over the job of striking a stable plasma arc and telling that control whether a flame is actually there.

Everything is built to Q/TYQ 01-2021, and the ignition circuit follows the all-solid-state, high-frequency boosting approach developed from the team's aerospace ignition work — no mechanical contact set to erode, and no spark energy fading as the unit ages. Operators meet it as a metal cabinet with labelled panel switches, an LCD, a manual/auto selector and a printed start-up procedure inside the lid, which is the interface a plant technician already expects from burner-front equipment.

Product Advantages

  • 1000 W of plasma energy. The inverter and the ignition generator are both rated at 1000 W, so the discharge does not sag on heavy fuel oil or a cold furnace the way a smaller igniter tends to.
  • 10 kV at 20 kHz. High-frequency boosting produces a stiff, repeatable discharge instead of a thin spark, and the solid-state circuit removes the contact wear that shortens the working life of mechanical igniters.
  • Two power paths in one cabinet. Normal running draws AC220V at 5 A; if the supply drops, the 48 V 20 Ah pack carries the sequence so a light-off is not lost to a trip elsewhere on the plant. Recharging runs at 5 A from the same feed.
  • Made to drop into an existing panel. The cabinet is self-contained, with its own switches, LCD and mode selector, so it can sit next to an existing burner panel and take over ignition duty without reworking the whole control scheme.
  • Ignition and detection on one set of terminals. Flame detection is part of the cabinet rather than a separate field instrument, which keeps the burner front less crowded and leaves one enclosure to service.
  • Service access built in. The lid hinges open on its struts, the working parts are reachable, and the display shows where the sequence stopped, so a technician can separate an ignition fault from a detection fault without dismantling the panel.

Specifications

AC power inputAC220V, 5 A
Lithium battery48 V, 20 Ah
Battery charging current5 A
Inverter power1000 W
Plasma ignition generator1000 W
Output voltage10 kV
Output frequency20 kHz
Flame detectionUV detector, internationally sourced, switching output
Control panelLabelled switches, LCD, manual/auto selector
EnclosureMetal cabinet, hinged lid, latches
Field connectionsHigh-voltage output cable, fan cable, ground line, ignition gun
Build standardQ/TYQ 01-2021

Flame Verification & Burner Safety

Striking an arc is only half of the light-off. The burner control also has to know the flame is there before it releases fuel, and the UV detector inside this cabinet reports through a switching output — a change of state the control panel reads directly, rather than an analogue value that has to be interpreted. Wire it into the logic that governs your pilot and main flame, and the cabinet can hold the sequence, release it, or lock out on a failed attempt.

Ultraviolet detection answers the question the operator is really asking: is there a flame in front of the sighting point. Because it reads the ultraviolet component of combustion rather than visible light or radiant heat, the signal stays meaningful while the furnace is still cold and the only thing to see is the arc and the first flame.

Two practical details decide how well that signal holds up. The sighting point has to see the flame the ignition gun creates, not a corner of the combustion chamber, and the detector window has to stay clean — a dusted or sooted window weakens the signal long before anything fails. Send the burner drawing and the port position with your enquiry and we will confirm the arrangement before the cabinet is built.

When a light-off does not take on this plasma ignition device for thermal power plant duty, the switching output is the quickest diagnostic on site. Flame indicated with fuel shut off points at the detector or its wiring; no flame while the arc is running points at fuel, air or the ignition gun. Splitting those two cases on the panel saves a shift of guesswork.

Applications

  • Refinery and petrochemical process furnaces. Light-off after a maintenance shutdown, with the flame proven before feed is introduced. A missed light-off here means flaring or a delayed restart, which is why the ignition and the flame signal sit in one cabinet.
  • Thermal power plant boilers. On start-up, the unit is the plasma ignition device for thermal power plant boilers, giving the operator an ignition source and a flame signal without a second detector loop to maintain.
  • Industrial burner retrofits. Where an older ignition unit has been nursed along for years, the cabinet fits the same panel area and takes over ignition duty while the burner's control logic stays as it is.
  • Emergency and standby ignition. On sites with an unreliable feed or a generator that takes time to pick up, the battery keeps a light-off available at exactly the moment it is needed.
  • Furnaces on repeated short cycles. Frequent heating and cooling puts the most wear on ignition hardware; a solid-state discharge has no contact set to erode between cycles.
  • Commissioning duty. During a new build or a burner upgrade, the manual/auto selector lets a technician step through the sequence by hand before the plant is handed over to automatic control.

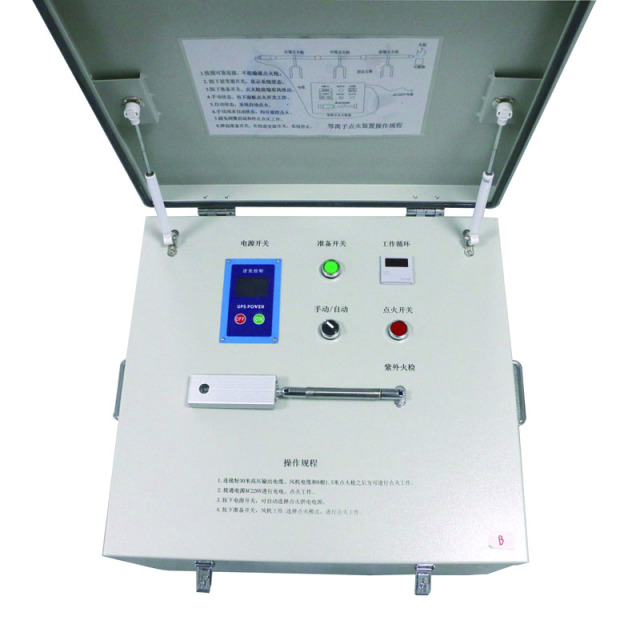

Cabinet Layout & Start-Up Sequence

  1. Land the high-voltage output cable, the fan cable and the ground line on their cabinet terminals, and fit the ignition gun at the burner end. The procedure printed inside the lid puts the earth first for a reason: nothing should be fired before the cabinet is grounded.
  2. Connect the AC220V supply. The cabinet starts charging the 48 V pack at 5 A as soon as it is energised, so the battery is ready the first time it is needed.
  3. Press the power switch. The unit selects its ignition supply automatically, which is what allows a light-off to continue on battery if the mains fails mid-sequence.
  4. Press the ready switch. The fan starts and the panel comes up for ignition mode selection.
  5. Choose manual or auto on the selector. Manual is the setting for commissioning and fault-finding; auto hands the sequence back to the burner control.
  6. Press the ignition switch and watch the working cycle on the display. The readout shows where the sequence sits, so you can see where it stopped if the arc does not establish.
  7. Confirm the flame on the UV channel before releasing the burner to normal operation. If the detector shows nothing while the arc is running, stop and check the gun, the fuel and the air rather than repeating the attempt.

Model Reference & Replacement

Choosing the right version starts with what is already on the burner. When a unit is being replaced, read the model and rating from the plate on the old cabinet and send it along with a photograph of the installation; we will confirm whether this cabinet matches the duty or whether a different configuration in the range is the closer fit.

Within the plasma range, this is the full configuration: ignition generator, UV flame detection and battery backup in one enclosure. The TYDQ-2 publishes an AC220V 10 A input with the same 10 kV / 20 kHz output and the same Q/TYQ 01-2021 standard, so where a plant only needs the ignition output and already has detection elsewhere, that unit is the simpler choice. Where the ignition has to survive a supply dip and the flame has to be confirmed from the same cabinet, this is the version to specify.

The parts in front of the cabinet matter as much as the cabinet itself. The high-voltage output cable, the fan cable and the ignition gun are matched to the generator, and a cable that is too long, too thin or damaged costs arc energy before it reaches the burner. Send the run length and the gun length with your enquiry and we will supply the set together instead of leaving you to match parts afterwards.

Ordering & Delivery

  1. Send the burner details: fuel, furnace type, the supply available on site and the plate data of any unit being replaced. That is what an industrial plasma igniter manufacturer needs to confirm whether the standard cabinet fits or a configuration change is required.
  2. Confirm the field set — the length of high-voltage output cable, the ignition gun length, and whether your existing cable and gun are being reused. These two lengths are the items that most often change a quotation.
  3. Confirm the spares you want to hold. Plants that cannot wait for a shipment usually keep a UV detector and an ignition gun on the shelf; tell us what to include and it will be quoted with the cabinet.
  4. Confirm the documents your own acceptance process needs before the order is placed, so they can be prepared with the shipment rather than after it arrives.
  5. Confirm the commercial points with your sales contact — price, lead time, payment method, packing and freight are quoted per order and depend on the destination and the configuration.
  6. Packing and dispatch. Cabinets travel crated with the panel protected and the accessories boxed separately; ask for the packing list with the shipping documents if your site needs one at goods-in.

Use Scenarios

  • Petrochemical processing facilities: the igniter acts as a critical component in ignition systems for furnaces and reactors that call for high-energy ignition precision.
  • Volatile plant environments: robust plasma ignition paired with integrated UV flame detection supports rapid flame establishment and real-time safety monitoring.
  • Combustion control integration: the unit is built to fit into existing combustion control networks and automated shutdown systems, with the exact safety standards and approvals for your site confirmed during specification.
  • Backup ignition for industrial burner systems, where ignition reliability is paramount and the lithium battery backup helps maintain continuity through power fluctuations.

Technical Support & Model Matching

Not every buyer arrives knowing which item in the range fits. Tell us what the part has to do, the space it goes into and the supply you have, and our engineers check it against the specifications we publish and tell you which model matches — and when a standard item will not do. The same team designs, builds and tests the products in our own plant in Shaanxi: 28 people, 16 patents, national high-tech enterprise status, in business since 2018. They answer questions before you order, stay reachable afterwards for fitting questions and fault-finding, and take custom or non-standard requests directly.

FAQ

What type of power input does this plasma igniter require?

It runs on an AC220V supply drawing 5 A, and the cabinet carries a 48 V 20 Ah lithium battery charged at 5 A from that same feed. You bring in one AC220V supply and the unit decides which source to ignite from — mains when it is present, battery when it is not. Nothing else is needed on the supply side.

Can the unit be adapted to a specific furnace or control scheme?

Yes. As an industrial plasma igniter manufacturer we build to order, and the adjustable items are the ones that decide integration: how the switching output is used in your burner logic, the cable and gun lengths, the panel labelling your operators expect, and the way the cabinet is mounted beside the existing panel. Send the burner drawing and the control signals you work with, and the configuration is agreed before production.

How is safety and reliability maintained in service?

Three things carry it. The ignition circuit is all-solid-state and built to Q/TYQ 01-2021, so there is no contact set wearing down between light-offs. The UV detector reports flame presence through a switching output your burner control can act on directly, which is what allows a proper lockout instead of a hopeful retry. And the battery path means a mains dip does not leave a furnace half-lit with no way to finish the sequence.

Do you provide technical support and installation assistance?

Yes. We support the unit with installation guidance and maintenance advice, and the same team that builds it answers the questions afterwards, including fault-finding when a light-off will not establish. Support is available by email or phone for as long as the unit is in service.

What does the switching output from the UV detector connect to?

It goes to the flame input of your burner management or ignition control panel, where its change of state tells the control whether a flame is present. That signal is what permits the sequence to continue, holds it, or trips it. Tell us the input type your panel expects before the cabinet is built and the wiring will be matched to it.

How does this model differ from the TYDQ-2?

The TYDQ-2 publishes an AC220V 10 A input with the same 10 kV / 20 kHz output and the same Q/TYQ 01-2021 standard. This model is specified with the 48 V 20 Ah battery and the integrated UV detector, which is what lets it carry a light-off through a supply interruption and confirm the flame from the same cabinet. If detection already exists on your burner, the simpler unit is worth comparing before you decide.

Will it work for boiler light-off in a thermal power plant as well as a refinery furnace?

Yes. What differs between a boiler front and a refinery furnace is the burner front and the control signals, not the ignition principle. Tell us the furnace type and the sighting arrangement with your enquiry and the configuration follows.

How do I size the output cable and the ignition gun?

Measure the actual run from the cabinet position to the burner port, and the depth from the port to the ignition point. The start-up procedure printed on the cabinet refers to a 30 m high-voltage output cable and a 5 m ignition gun, which covers a lot of installations, but a longer or shorter set is supplied to match the site. Give us both lengths with the order.
