Description

Product Overview

The TYST-3 ignition energy test bench is a laboratory instrument assembled to the requirements of the team that orders it. The ignition energy it releases is set for the experiments you run, and the unit is wired and laid out to suit the rig it has to drive, so the bench follows a research programme instead of asking the programme to accept a fixed catalogue specification.

It belongs to the family of ignition energy testing equipment for research laboratory work rather than to plant hardware: an instrument that puts a known amount of energy into a test volume, repeatably, so that what happens next can be measured, logged and compared between runs. Work of this kind usually asks how much energy a fuel, dust or gas mixture needs before it lights, how far that threshold moves when pressure, temperature, humidity or turbulence change, and whether the same setting gives the same result on the hundredth discharge as on the first.

Day to day the bench stands on a laboratory table beside the vessel it fires. The operator makes the settings on the front panel, runs the sequence, reads the result, and changes the setting again for the next run. Because we work as a custom ignition test bench manufacturer, the enclosure, controls and connections are put together per order, and the configuration is settled with our engineers before assembly rather than picked from a list of stock variants.

Bench Hardware & Control Panel

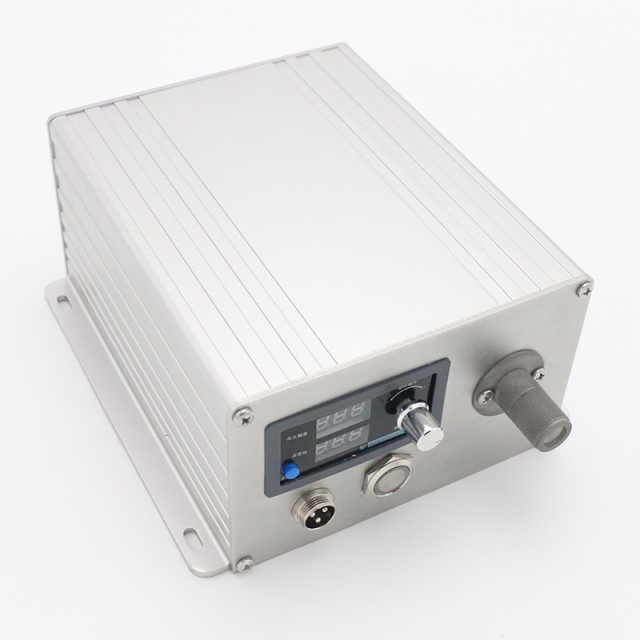

  • Ribbed aluminium housing — the case is extruded aluminium with ribs running along the body; the ribs stiffen the enclosure and give the electronics a larger surface to shed heat through during a long session of repeated firing.
  • Digital display — a display on the front panel shows the current settings while you work, so a value can be read off and written into the test log instead of inferred from a knob position.
  • Rotary control — the main adjustment is a rotary knob, which lets the operator move to a setting by hand and return to a recorded position quickly between runs.
  • Metal push button — a metal push button sits beside the knob; metal rather than plastic stands up to daily use, gloves and repeated presses over the life of the instrument.
  • Multi-pin front connector — the link to the test fixture is taken from a multi-pin connector on the front panel, giving one defined connection point rather than a set of loose terminations.
  • Cable gland entry — the supply cable enters the case through a cable gland, which keeps dust out of the enclosure and takes the strain off the internal wiring.
  • Screwed panel and flanged base — the front panel is held by screws so the case can be opened when service is needed, and the flanged base keeps the unit sitting flat and stable on a bench top. The metalwork is finished in brushed silver.

Configured To Your Test Conditions

No two ignition studies ask for exactly the same instrument. The energy region you work in, the way the bench is wired to your chamber or electrode holder, the panel arrangement your operators prefer and the paperwork your institute keeps on file all vary from one laboratory to the next. A group measuring the minimum ignition energy of dust layers and a team characterising a high-energy igniter for a furnace will not receive the same bench.

The configuration is therefore written down as a specification before assembly starts, and that document becomes the build instruction. It records what the bench has to do rather than what a catalogue says it does, and your own engineers can check it line by line before anything is manufactured.

Each build follows Q/TYQ 01-2021, our enterprise standard for ignition equipment, and the metalwork, panel and internal wiring are assembled in our own workshop rather than bought in as a finished unit. That matters when a laboratory later needs a second bench matched to the first, or a change made to an existing one.

As a custom ignition test bench manufacturer we also take on the cases that do not fit a standard layout — an unusual connector, a chassis that has to slide into an existing cabinet, or a control panel rearranged around the way a particular rig is operated. Those are design conversations at the specification stage, not exceptions raised after delivery.

Discharge Frequency Control

  • Sweeping the rate — hold the energy constant and step the discharge frequency up or down between runs; the change in outcome is then attributable to repetition rather than to energy.
  • Matching a real igniter — when the bench is characterising an igniter or ignition circuit, it can be run at the repetition rate that unit sees in service, so laboratory results correspond to field behaviour.
  • Single events and long series — a slow rate leaves time to reset between discharges for one-shot measurements, while a faster rate builds a series for consistency and endurance checks on the same instrument.
  • Changes between runs — the frequency is changed at the panel, so a new setting does not mean rebuilding the set-up or dismantling the connection to the chamber.
  • Recorded settings — note the frequency alongside the energy for every data set; a result quoted without its repetition rate is difficult for another team to reproduce.
  • Range agreed at build — the span of frequencies a bench covers is fixed during configuration, so tell us the slowest and fastest rate your programme uses and the range is sized around that.

Laboratory Applications

These benches are bought by people whose job is to produce a number they can defend. In a university combustion laboratory the unit sits beside a constant-volume vessel or a shock tube, delivering the ignition event at a stated energy and rate while pressure traces are recorded. At a safety institute it is used to establish minimum ignition energy for dusts, solvents or gas mixtures, and to repeat those measurements across humidity and temperature conditions. An igniter manufacturer's development group works the other way round, driving its own electrode, nozzle or semiconductor tip at known settings to see how the spark behaves before the part goes into a boiler or a furnace.

Test houses and certification bodies use the same bench for comparative work, running one fuel or one igniter against a reference at fixed settings so that the difference between two samples is measurable rather than impressionistic. Research groups studying dust explosions use it to separate the energy needed for ignition from the energy needed to propagate a flame, which is two different measurements on the same rig.

For laboratories still building their capability, the bench also serves as reference ignition energy testing equipment for research laboratory programmes that will expand — the configuration is agreed with the next phase of work in mind, so the instrument does not have to be replaced when the scope grows. Where a department runs several rigs, more than one bench can be specified from the same agreed document.

Specifications

Product typeIgnition energy test bench
ModelTYST-3
ConfigurationBuilt to the user's test requirements
Ignition energySet for the scenarios agreed at order
Discharge frequencyAdjustable during testing
Build standardQ/TYQ 01-2021
EnclosureRibbed aluminium case with screwed front panel
Front panelDigital display, rotary control, metal push button
Test connectionMulti-pin front connector with cable gland cable entry
MountingFlanged base for bench-top use
Main usersResearch laboratories and test institutes

Defining Your Configuration

  1. Describe the experiment in plain terms: what is being ignited, in what volume, and what you record as the result. Every other decision follows from this.
  2. State the energy region your programme covers, from the lowest value you need to the highest, so we can confirm what the bench can be built to hold and where its limits sit.
  3. Give the repetition rates you work at, from single discharges with a pause between them to continuous series, so the discharge frequency range suits your tests.
  4. Explain the connection: the chamber or fixture, the electrode holder, the cable route, and where the bench will stand relative to the rig.
  5. Send drawings or photographs of the existing set-up, including any cabinet or bench space the instrument has to fit into.
  6. Say what paperwork your institute needs alongside the instrument, so it can be prepared during the build rather than requested afterwards.
  7. Review the configuration document line by line and approve it; that approved version is what the workshop builds to.

Ordering & Delivery Notes

Packing and shipping are agreed per order, because a bench built around your chamber does not travel like a boxed instrument off a shelf. Confirm the destination and the delivery terms you work on before the order is placed, and tell us if your own freight forwarder will handle the move, since the crate has to be sized and braced for the route it takes.

Import paperwork should name the instrument correctly for your customs authority — research equipment is classified differently from country to country, and a mismatch is far easier to correct before the crate leaves than after it lands. If a certificate of origin or particular invoice wording is required by your institution, raise it when the order is confirmed.

Lead time is quoted against the agreed configuration rather than as a general figure. Any change to the specification should be raised before assembly begins, because that is when it can be accommodated without moving the delivery date.

Operating instructions, the standard documentation and any labelling can be discussed in the same conversation — tell us the language and format your team works in. For anything still open, talk to our engineers directly: we would rather settle the detail with you than leave it to a stock description.

Operator Skill Level

  • Panel-level control — every routine setting is made by hand at the front panel: the rotary control selects the value, the metal push button fires the sequence, and the digital display shows what is currently set. An operator reads the instrument directly rather than working through a software screen or a programmed script.
  • Reading the setting before firing — because the display holds the live value, the person running the test can write the energy and the discharge frequency into the log at the moment of the run. That single habit is what lets another team reproduce the result months later.
  • Who can run a session — a laboratory technician or a graduate student briefed on the experiment can carry out a run: choose the energy, set the repetition rate, fire, and record both figures. The research judgement stays with the person who designed the study — what to test, what the numbers mean and what to change next. Because the discharges carry real energy, running the bench stays with people who have been briefed on the laboratory's own ignition procedure.
  • Where teaching fits — a department that also teaches ignition behaviour does not need a second instrument. Fix the energy and the discharge frequency for the session, log both, and a class watches the same event repeat rather than a one-off; a slow repetition rate leaves room to explain between discharges, and the display gives the group the actual figure instead of a nominal one.
  • What is not a routine change — swapping the electrode, nozzle or chamber connection, or moving the bench to a different rig, is a configuration decision rather than a front-panel adjustment. Keep the agreed configuration document and the connector pinout with the bench so a later operator can see how it is wired without taking the case apart.
  • Handover and single ownership — ask our engineers for a walkthrough of the panel settings and the front connection when the bench arrives. On a shared instrument, naming one person to hold the configuration document and the run log is what keeps settings comparable between users and between semesters.

Technical Support & Model Matching

Not every buyer arrives knowing which item in the range fits. Tell us what the part has to do, the space it goes into and the supply you have, and our engineers check it against the specifications we publish and tell you which model matches — and when a standard item will not do. The same team designs, builds and tests the products in our own plant in Shaanxi: 28 people, 16 patents, national high-tech enterprise status, in business since 2018. They answer questions before you order, stay reachable afterwards for fitting questions and fault-finding, and take custom or non-standard requests directly.

FAQ

Is this the same thing as a spark tester?

No. A spark tester confirms that a spark exists; an ignition energy test bench releases a known amount of ignition energy at a settable discharge frequency, so each result can be measured, logged and compared with the next run. That difference is also why the energy is configured around your experiment instead of being fixed at a single value.

Can the ignition energy be set to the range our experiments use?

Yes. The energy is configured for the scenarios agreed when the bench is ordered, which is why the first conversation is about your test rather than about a stock rating. We build to the band you work in; define the range before the order is placed and check the final figures on the configuration document.

Can the bench drive different electrode or nozzle designs?

The bench feeds the fixture through the front-panel connector, so the electrode, nozzle or probe fitted to your chamber is the part that changes between experiments. If several front-end designs are planned, list them while the configuration is being agreed so one connection arrangement can serve all of them.

How does the bench connect to our test chamber?

Through the multi-pin connector on the front panel, with the supply cable entering the case through a gland. Send a drawing or photograph of the chamber, the electrode holder and the space around the bench, and the lead and connector are matched to that during the build.

What is supplied with the bench?

The scope of supply is written into the agreed configuration document. Chambers, electrode holders and fixtures that your laboratory already owns normally stay on your side, so list what you have before the specification is closed.

Can it be used for teaching as well as research?

It is ignition energy testing equipment for research laboratory work first, where repeatable settings and a written record matter more than a classroom demonstration. Where a department also teaches ignition behaviour, the same bench can be used for demonstrations as long as the settings for each session are recorded.
