Description

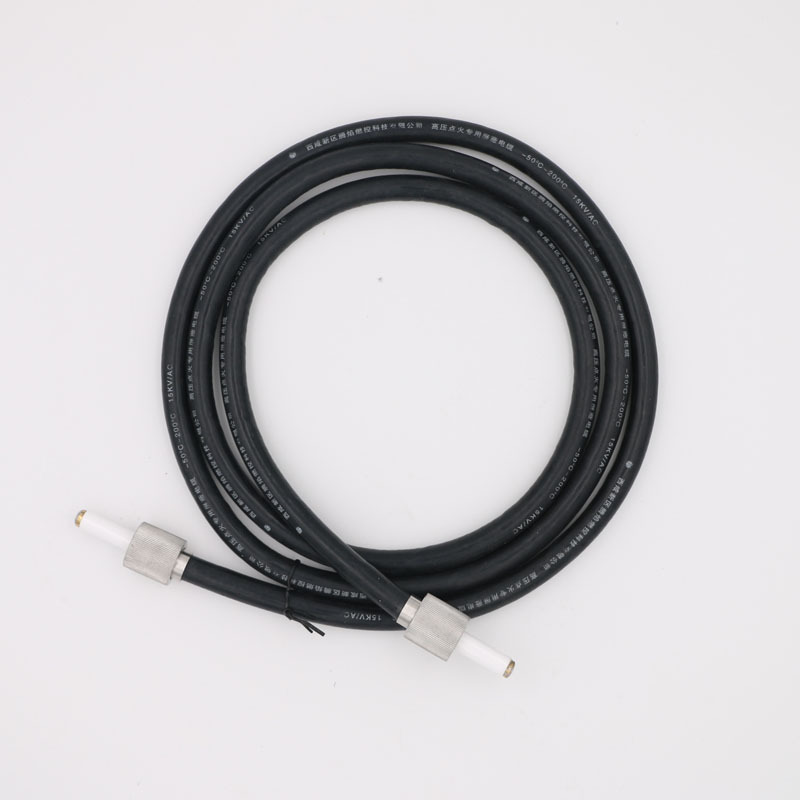

High-Voltage Ignition Cable (TYL-1, All-Silicone Rubber, Shielded Sheath Structure)

The High-Voltage Ignition Cable (TYL-1) is a heavy-duty power transmission cable designed specifically for transmitting high-voltage pulse electricity to industrial igniters and electrodes. Built with a multi-strand tin-plated copper conductor and an all-silicone rubber insulated body, this cable ensures minimal energy loss and maximum electrical safety in demanding ignition systems.

Featuring an advanced shielded tape sheath structure, it effectively guards against electromagnetic interference and physical stress. The cable maintains excellent flexibility and electrical insulation across an operating temperature range of -50°C to 200°C, with fully customizable cable lengths to fit your specific installation requirements.

Expert Selection Guide

To select the appropriate ignition cable configuration for your system, evaluate the following requirements:

  1. Voltage & Conductor Integrity: Confirm that a single-core, multi-strand tin-plated copper conductor satisfies your high-voltage pulse transmission stability standards.
  2. Temperature Rating: Ensure your operating environment remains within the continuous thermal limit of -50°C to 200°C.
  3. Custom Length Specifications: Measure the precise distance between your igniter unit and electrode assembly to request tailor-made cable lengths.

Technical Specifications

Parameter Item Technical Specification
Function Transmit high-voltage pulse electricity
Material Composition Silicone rubber, tin-plated copper wire
Process Structure Single-core, multi-strand, all-silicone rubber, shielded tape sheath structure
Operating Temperature -50°C to 200°C
Length Customization Ignition cable length can be customized according to customer requirements

Core Product Features

  • High-Dielectric Silicone Insulation: All-silicone rubber construction provides superior breakdown resistance and high-voltage containment.
  • Tin-Plated Copper Core: Multi-strand core enhances conductivity while preventing oxidation and degradation in harsh working environments.
  • Shielded Tape Sheath Structure: Protects high-voltage signal integrity and prevents external electromagnetic interference.
  • Wide Operational Temperature Range: Retains high elasticity and mechanical durability from -50°C sub-zero conditions up to 200°C heat.

Practical Application Scenarios

Industry Sector Operational Scenario Cable Solution
Industrial Boiler Systems High-voltage pulse transmission between control box and burner igniter. All-silicone rubber insulation rated up to 200°C thermal stability.
Gas & Thermal Turbines Continuous pulse ignition under vibration and thermal fluctuation. Multi-strand tin-plated copper core for flexible, fatigue-resistant connection.
Petrochemical Thermal Units Outdoor ignition installations exposed to extreme cold or corrosive gas environment. Shielded tape sheath structure with sub-zero tolerance down to -50°C.

Quality Assurance & Warranty Policy

Every batch of TYL-1 high-voltage ignition cables undergoes complete quality control checks prior to shipment:

Service Policy Commitment Details
Standard Warranty 12-month quality guarantee from the date of shipment.
Testing Standards 100% full insulation resistance, high-voltage withstand, and continuity testing.
Custom Length Service Tailored cutting and terminal preparation based on customer engineering drawings.

Frequently Asked Questions (FAQ)

Q1: What are the primary advantages of using tin-plated copper wire for ignition cables?

A: Tin-plating provides exceptional corrosion and oxidation resistance, ensuring stable electrical conductivity and reducing contact resistance over long-term operation in high-temperature or humid environments.

Q2: What temperature range can this ignition cable handle?

A: The TYL-1 cable is rated for continuous operation from -50°C to 200°C due to its high-grade all-silicone rubber sheath and insulation.

Q3: Can I order custom lengths according to our burner setup?

A: Yes, ignition cable lengths are fully customizable based on your specific system specifications and site dimensions.

Need custom length quotes or technical specifications? Contact our engineering team today for immediate assistance!
